Large-Format Digitizers

DrawingBoard VI

Industry leader in resolution and accuracy for blueprint measuring

Super L VI

Offers greater flexibility and patented sensing technology for enhanced performance of high-quality blueprints

Roll-Up III

Completely mobile and reliable with innovative sensing technology and precision transducers

Surface-Lit Drawing Board

Consumes less than half the energy of conventional back-lit tables

Digitizers to meet your every need

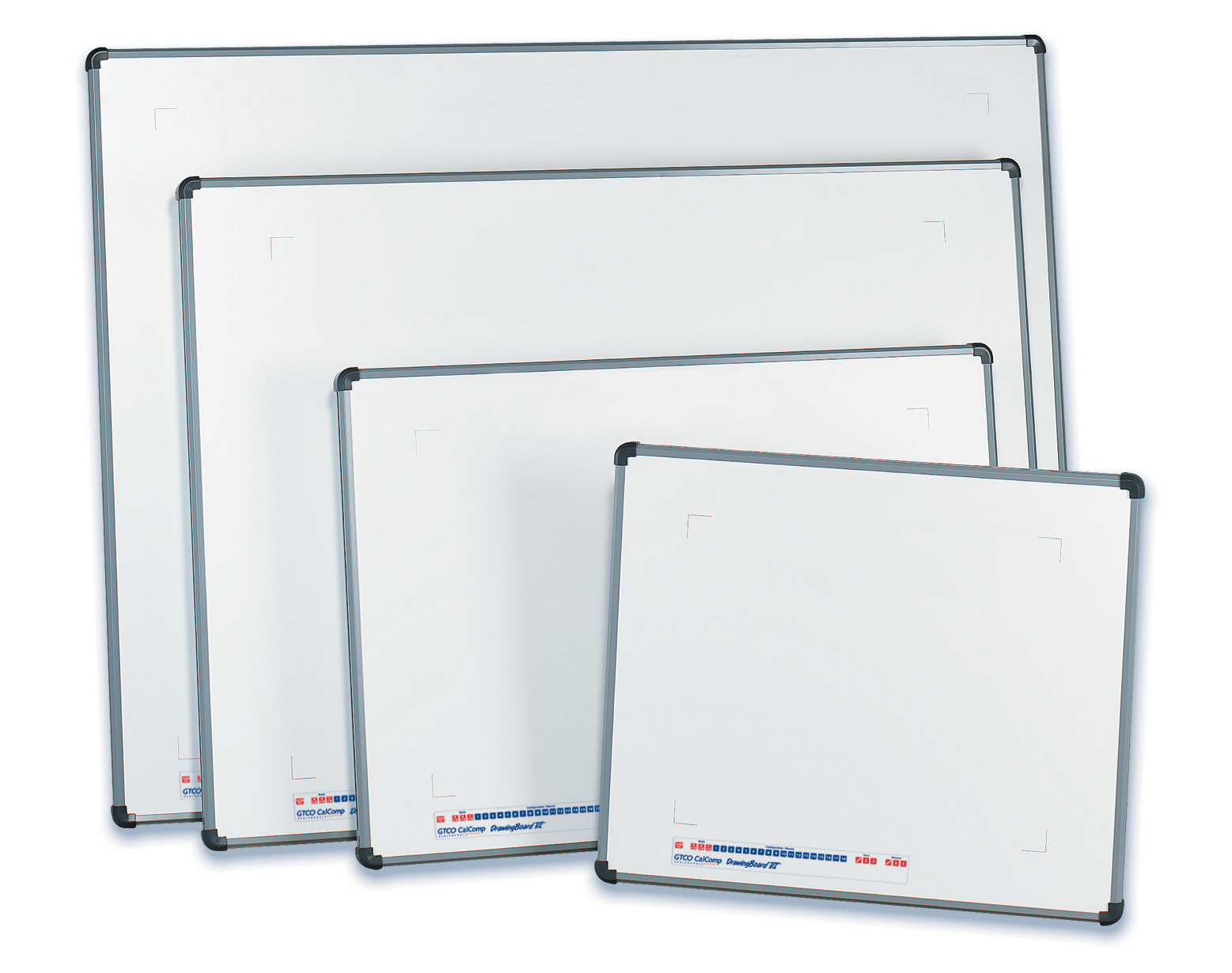

DrawingBoard VI

Industry leader

Designed for demanding CAD, GIS, engineering, textile and apparel applications, the DrawingBoard VI series is the design professional’s choice in large-format digitizers. DrawingBoard VI systems feature integrated USB and RS-232 Serial connections. When connected through a USB, no power supply is required simplifying setup and operation.

DrawingBoard VI digitizers utilizes high-performance tools engineered with a state-of-the-art positioning grid to ensure reliability, performance and quality. Multiple accuracy versions are available to match specific system requirements and an integrated mounting channel allows accessories, such as a pen tray, to be easily and quickly mounted. DrawingBoard VI digitizers work with a variety of cursors and stylus pens.

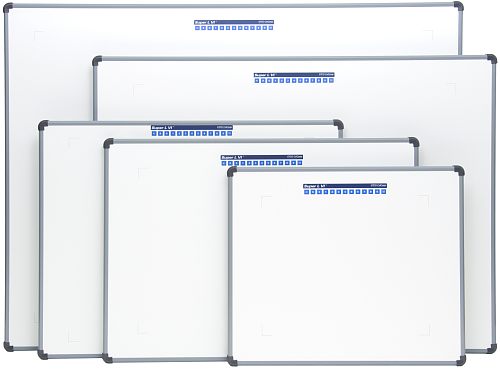

Super L VI

Greater flexibility

This large-format digitizer offers greater flexibility and patented sensing technology for enhanced performance of high-quality blueprints. An integrated USB connection allows Super L VI to be powered through any PC, providing access to industry-leading software programs. Incorporate GTCO CalComp’s SuperSet Menu for simple and fast navigation between applications.

Customize Super L VI by selecting from a variety of corded or cordless transducers. Super L VI’s advanced driver set, provided on CD in a user-friendly interface, makes setup even easier. Custom configurations, previously available through the tablet hardware, are accessible through a software configuration program that supports emulations of popular industry formats, including CalComp 3400 and Summagrid.

Roll-Up III

Dynamic workspace

Transform any environment into a collaborative workspace. The Roll-Up III digitizer series offers complete mobility and is engineered with GTCO CalComp’s exclusive patented Redundant Grid Technology™ for greater durability and ruggedness. Simple setup makes the Roll-Up III versatile for use in the office or in the field.

Portable, lightweight Roll-Up III digitizers are only 0.078 in / 2.0 mm thick allowing them to be easily rolled for storage or transport to various task sites. Constructed with advanced materials, including a tough Lexan® work surface, Roll-Up III digitizers lay flat, maintain a smooth work surface and feature flexible dual orientation that allows the controller housing to be configured on the right or left edge of the digitizer.

Roll-Up III is available with a variety of pointing devices including a pen-shaped stylus-ideal for quantity takeoffs and the accurate 4 and 16-button MaxVu™ cursors, which feature a wide viewing area for precise digitizing.

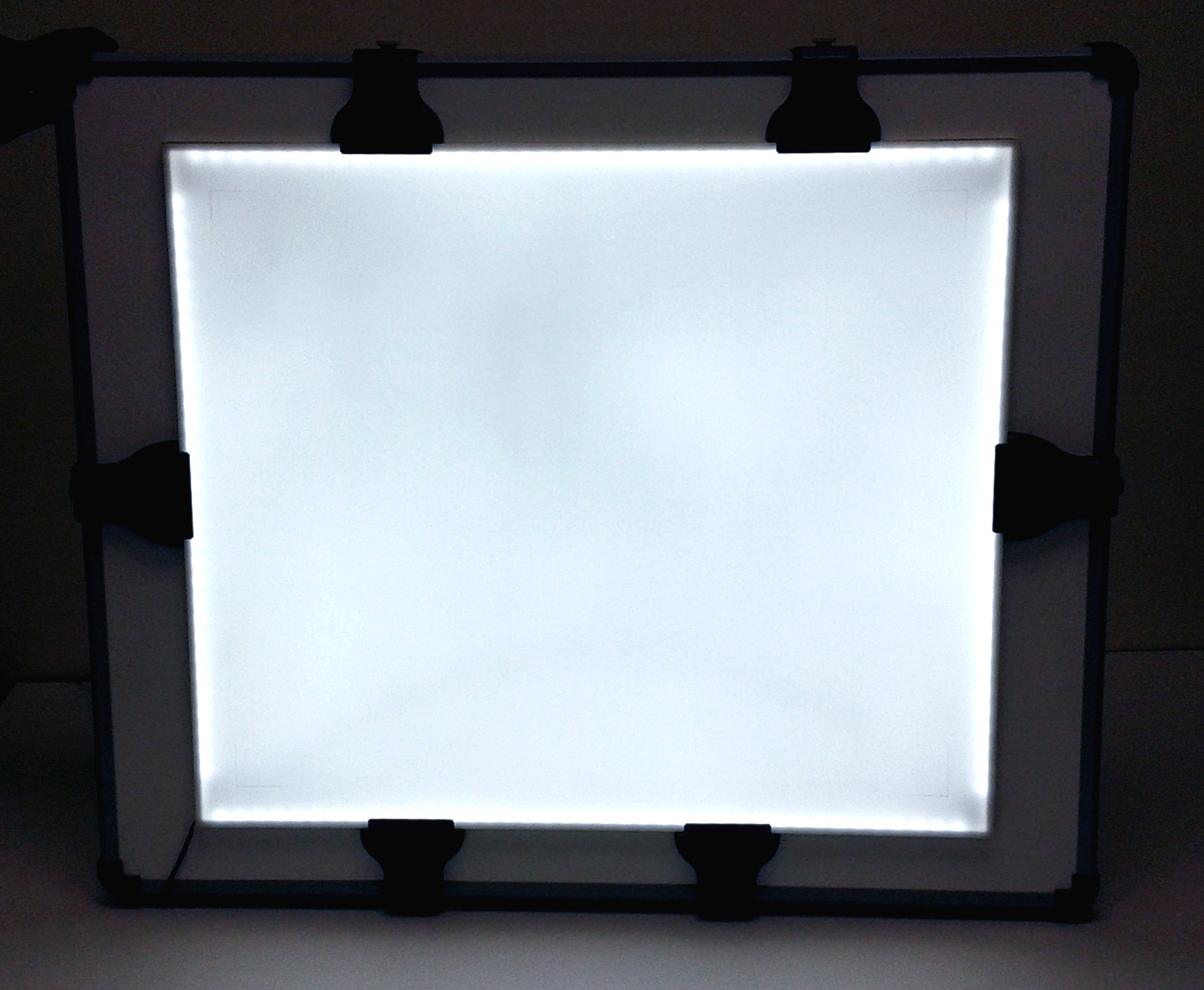

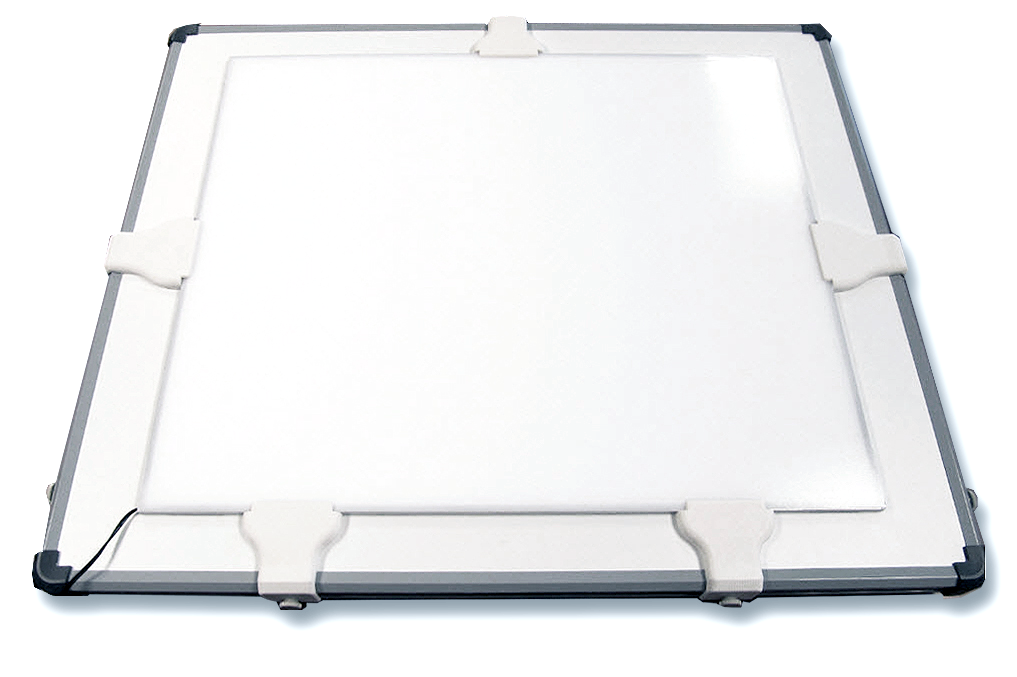

Surface-Lit Drawing Board

Less energy. More power.

Enhance the quality and accuracy of designs through illumination with Surface-Lit DrawingBoard. The innovative large-format digitizer features a thin panel of LED backlighting engineered for superior clarity and guarantees the highest level of data integrity available today.

Surface-Lit DrawingBoard utilizes high-performance tools engineered with a state-of-the-art positioning grid to ensure reliability, precision and value. An integrated mounting channel allows accessories such as a pen tray to be easily and quickly mounted. Surface-Lit DrawingBoard also encompasses a cool working surface that uses less than half the energy of conventional back-lit tablets.

VersaTable

Ideal support

VersaTable is the perfect companion for DrawingBoard VI and Super L VI digitizers. This easy-to-install pedestal provides greater functionality and a stable platform for precise and superior designs. All components are adjustable to suit personal preference.

GTCO CalComp is here to help you get started.
